2026 KZRV Connect 241BHKSE Specs & Towing
Towing numbers first on the 2026 KZRV Connect 241BHKSE
If you shop by the spec sheet, the 2026 KZRV Connect 241BHKSE gives you a tidy set of figures to work with. Dry weight is 5,600 lbs. GVWR is 7,000 lbs. Cargo capacity is 1,230 lbs, and hitch weight at dry is 710 lbs. The spread between dry weight and GVWR is 1,400 lbs, while the listed cargo capacity is 1,230 lbs: load up water, food, clothes and gear, and your tongue weight climbs right along with it.
| Connect 241BHKSE at a glance | |
|---|---|
| Sleeps | 4 |
| Length | 29.08 ft |
| Dry weight | 5,600 lbs |
| GVWR | 7,000 lbs |
| Hitch weight | 710 lbs |
| Slide-outs | 1 |
| Fresh water | 45 gal |
| Grey water | 32 gal |
| Black water | 32 gal |
| Cargo capacity | 1,230 lbs |

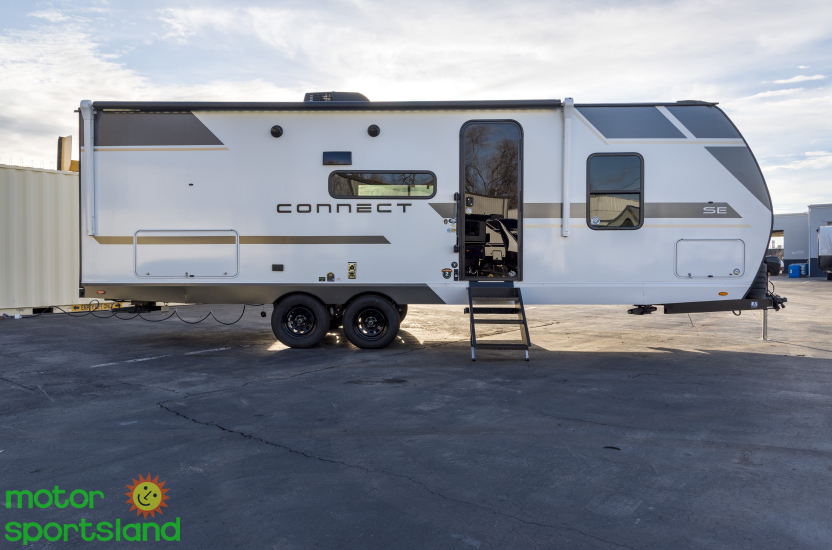

Overall length is 29.08 ft, width is 8 ft, and height is 10.83 ft, which is the number to write on a sticky note if you store at home under an eave or park in a garage. It rides on two axles with ST225/75R15E tires.
Pull your own truck's door jamb sticker and owner's manual before you shop this one, and look at two ratings, not one. Tow rating tells you if the truck can pull 7,000 lbs. Payload tells you whether it can carry the loaded tongue weight plus passengers, fuel, firewood and whatever's in the bed. Plenty of half-tons handle a trailer in this range comfortably; plenty of others run out of payload before they run out of tow rating. The numbers below are the ones to run through your calculator.
GVWR of 7,000 lbs is the figure your tow vehicle has to be rated for, loaded and wet, not the 5,600 lb dry weight.
The 710 lb dry hitch weight is what eats your truck's payload, and it goes up as you add gear ahead of the axles.
Cargo capacity of 1,230 lbs is your real packing budget, and 45 gallons of fresh water uses roughly a third of it.
Water, power and time away from hookups
Fresh water is 45 gallons, with 32 gallons of grey and 32 gallons of black. Those tank sizes are close enough in size that you aren't guessing which one fills first, and dumping is done through enclosed dump valves rather than exposed pulls. LP capacity is 40 lbs.
The spec line shows 200 watts of solar on the roof, so this is a travel trailer with solar already working for you on a dry weekend, keeping the battery topped up for lights, the water pump and the control system. If you want to go further, KZ offers the Off the Grid Solar Package, available with two 110W flexible panels, a 30A MPPT controller and a 1,200W pure sine wave inverter.
Cold mornings and hot afternoons are handled by construction, not optimism. The underbelly is fully enclosed, insulated and heated to protect tanks and plumbing, with R-9 sidewalls, an R-20 roof and an R-24 floor. The RV Airflow System improves A/C airflow by an average of 40%, which means faster cooling and less noise while it works.
Setup, storage and the outside walls

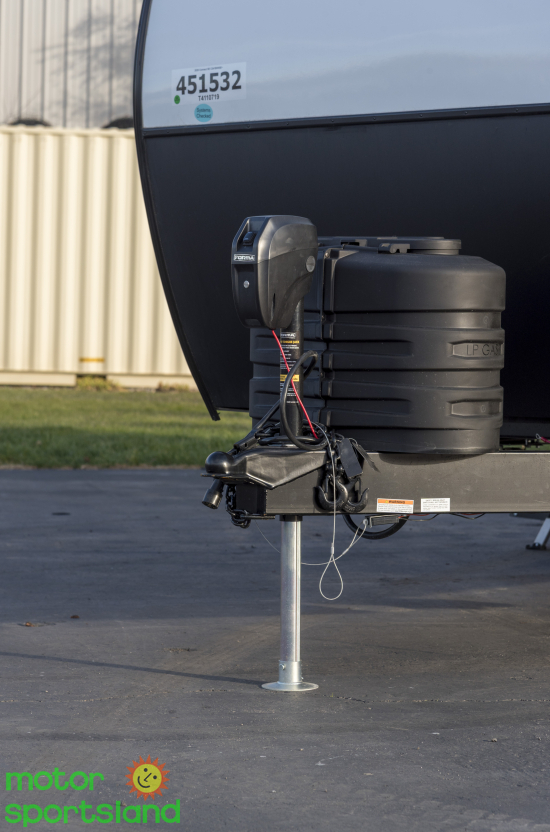

The lighted tongue jack earns its keep every time you arrive after dark, and setup, leveling and the awning are all managed through the KZ Engage Package powered by One Control. From the OneControl monitor and switch panel you can watch battery state, run the slide, run leveling, work the awning and lighting, and it's prepped for TPMS if you add sensors.

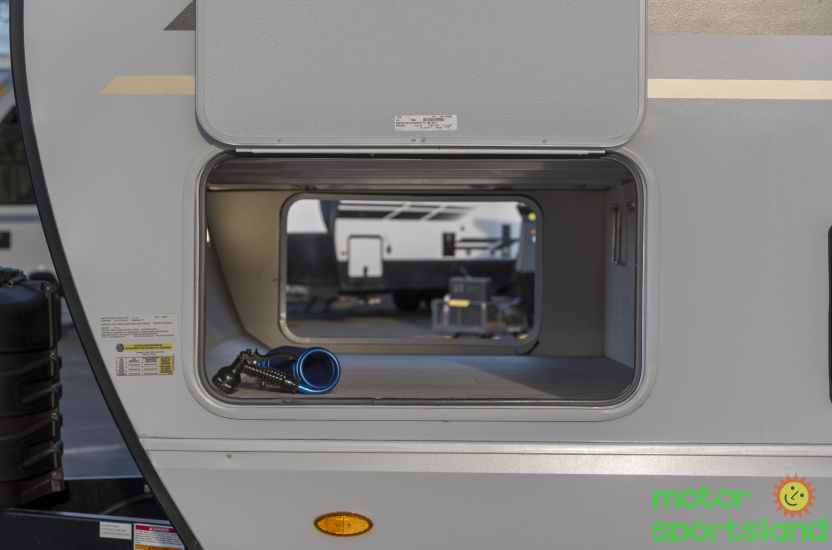

Pass-through storage up through the front handles chairs, hoses, a generator, leveling blocks and the bin of things you never unload.

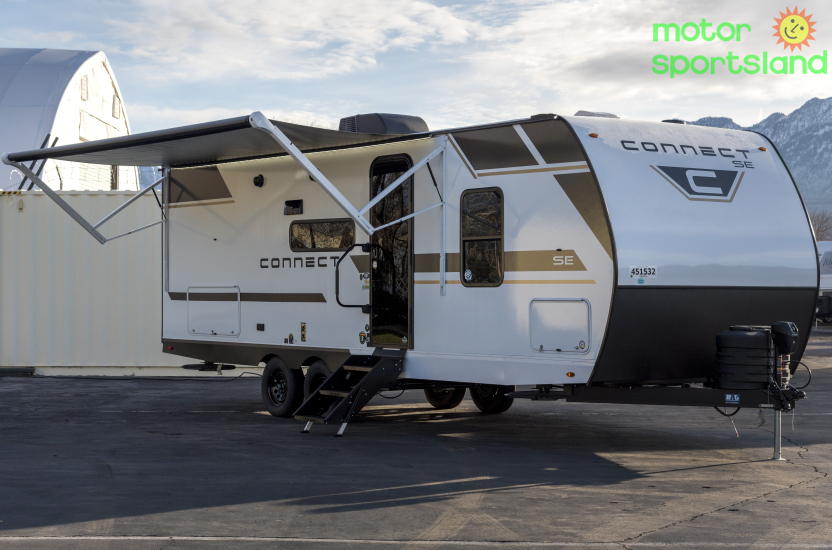

There's an exterior docking station for your water and utility connections, so the hookup routine happens in one place. The awning is an 18 ft run, which is real shade over the door side rather than a token strip.

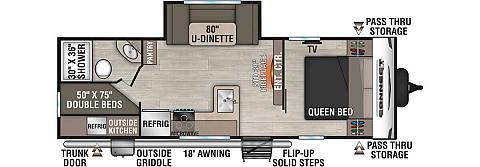

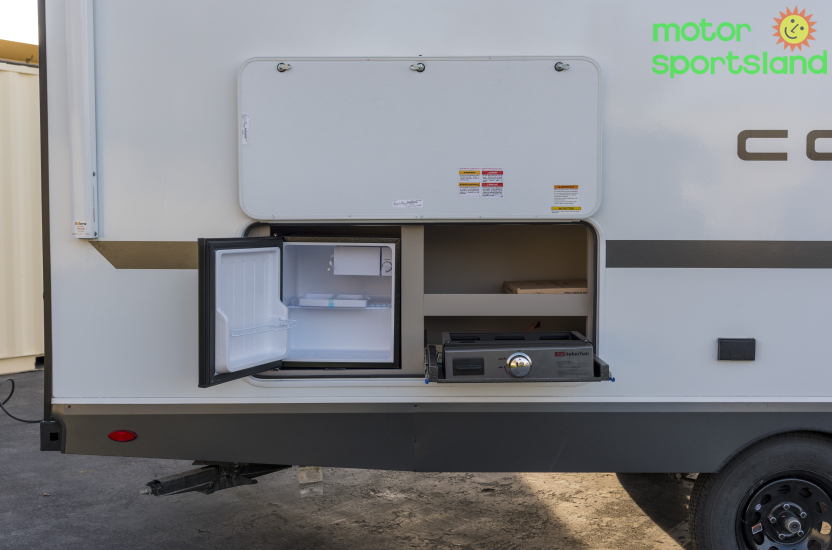

This floorplan is one of the Connect layouts that gets an outdoor kitchen, and it comes with a griddle and a refrigerator. Breakfast outside without heating up the inside is a genuinely good reason to buy a bunkhouse.
Sleeping four, with bunks and a bedroom

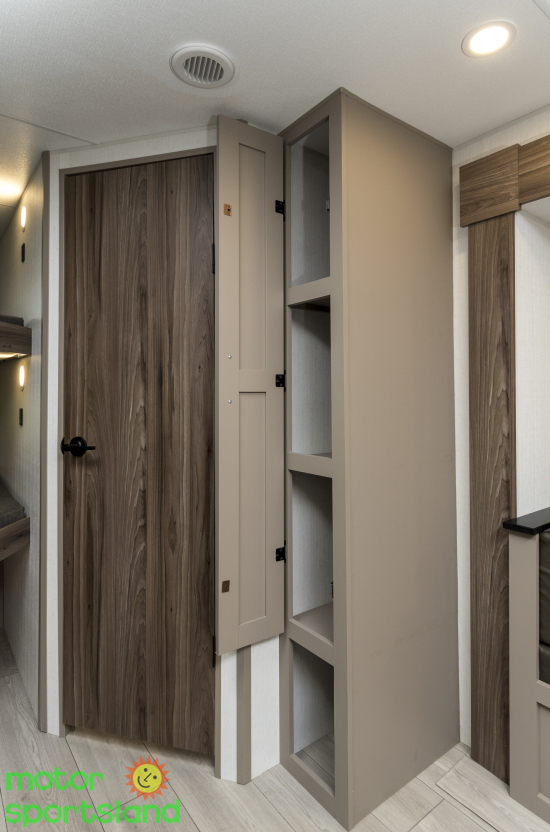

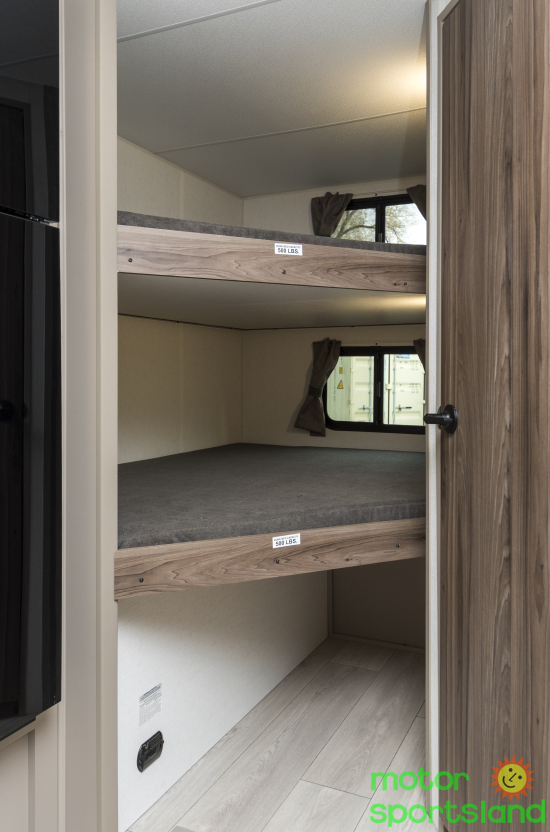

Sleeping capacity is four. There's a bunk area for the kids, and a separate bedroom with LED lighting and his-and-hers full-length closets, which is the storage detail that decides whether two adults can live out of a trailer for a week without arguing.

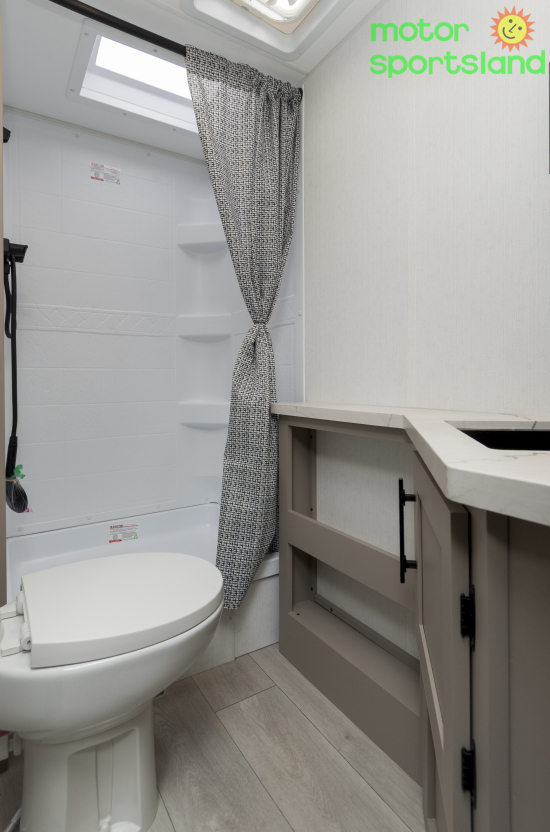

The bathroom sits within the same floorplan, so nobody is trekking through the bedroom to use it in the middle of the night.
Inside: kitchen, dinette and finishes

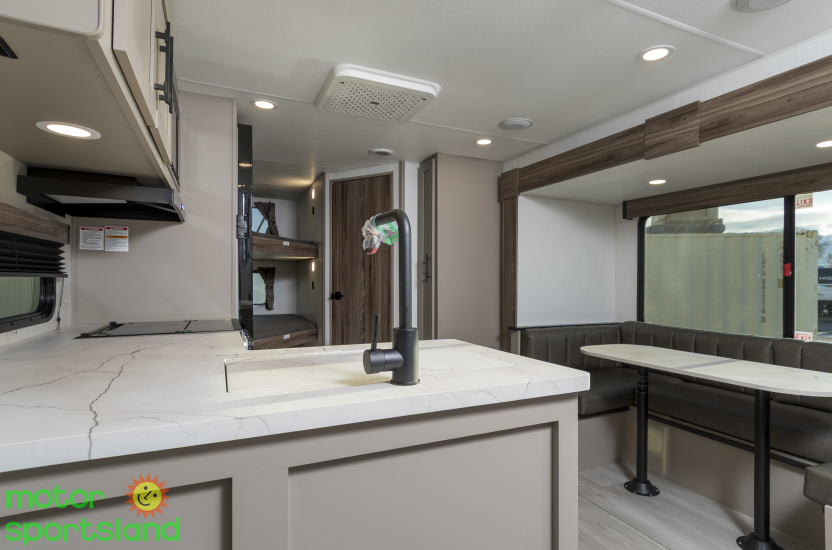

Interior height is 6.5 ft, and the single slide opens up the main living space once you're parked. The kitchen is laid out for actual cooking, with counter and cabinet space in Uni Sangrau cabinetry and an Ashwood interior color scheme.

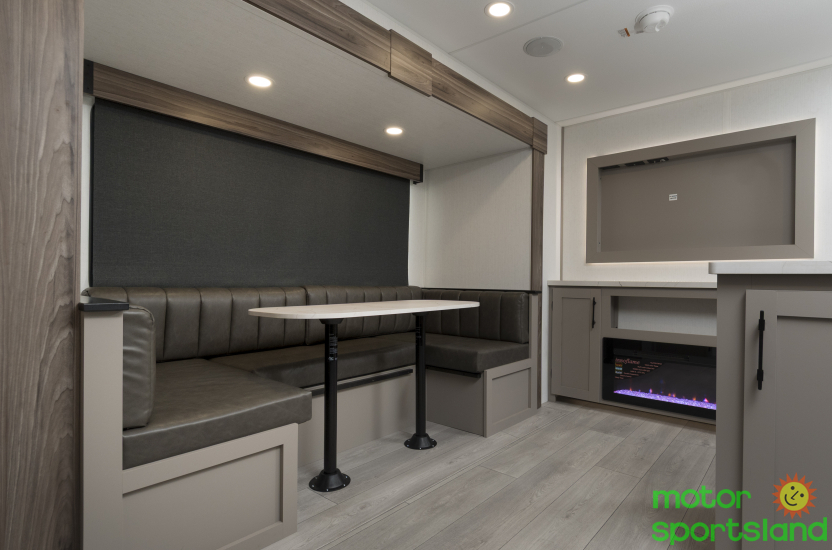

The dinette gives you a place to eat, deal cards and set up a laptop, and it's part of what makes this layout work for a family of four rather than a couple who happen to have bunks.
Windows get roller shades through the living area and pleated night shades where you want real darkness. The entry door uses a friction hinge with a grab bar and a screen-shot feature, so the door stays where you put it instead of slamming in canyon wind, and the grab bar gives you something solid to hold for safe passage in and out.
As a new travel trailer in the sub-7,000 lb class, this one is aimed squarely at buyers who want bunks, an outdoor kitchen and a bedroom with closets without stepping up to a three-quarter-ton truck. Among the travel trailers for sale in Spanish Fork, Utah, it's one of the easier ones to match to a tow vehicle you already own.
For the full spec sheet, including everything listed on the window sticker, check the live listing. Then come see us in Spanish Fork and back your truck up to one. We'll let you hitch it, feel how it sits on your suspension, and walk the whole floorplan with the slide out before you decide anything.
Frequently asked questions
What size truck do I need to tow the 241BHKSE?
Match the truck to a 7,000 lb GVWR and a hitch weight that starts at 710 lbs dry and rises as you load. Check your own truck's tow rating and, just as importantly, its payload rating on the door jamb sticker before you commit.
How much can I pack in it?
Cargo capacity is 1,230 lbs. Remember that filling the 45 gallon fresh tank uses a meaningful share of that, so weigh your water plan against your gear plan.
Does it have solar?
Yes, 200 watts. The Off the Grid Solar Package, with two 110W flexible panels, a 30A MPPT controller and a 1,200W pure sine wave inverter, is available if you want more capacity and inverter power.
Will it fit in my garage or under my carport?
Exterior height is 10.83 ft, width is 8 ft, and overall length is 29.08 ft. Measure your opening and your driveway depth against those three numbers.
How many people does it sleep?
Four, with a bunk area and a separate bedroom that has his-and-hers full-length closets.
