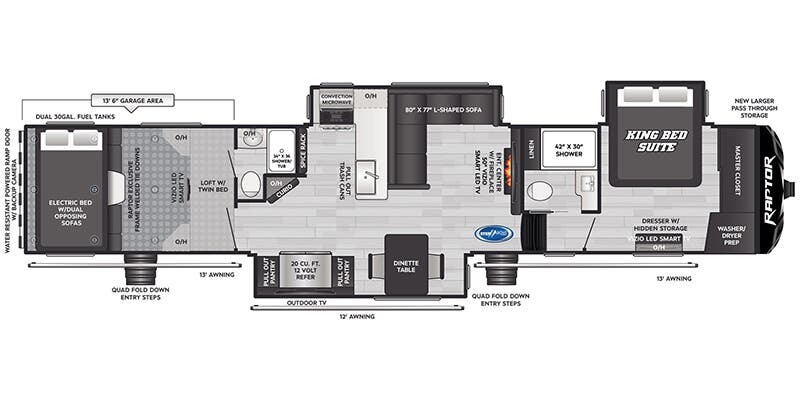

2027 Keystone Raptor 433 Floorplan Tour
Outside and storage on the 2027 Keystone Raptor 433
The outside of the 2027 Keystone Raptor 433 is set up to carry weight and park level without a stack of blocks.
| Raptor 433 at a glance | |
|---|---|
| Sleeps | 7 |
| Length | 46.08 ft |
| Dry weight | 17,645 lbs |
| GVWR | 21,000 lbs |
| Hitch weight | 3,990 lbs |
| Slide-outs | 3 |
| Floorplan | Bunkhouse, Center Bath, Center Living, Front Bedroom |
| Fresh water | 173 gal |
| Grey water | 104 gal |
| Black water | 104 gal |

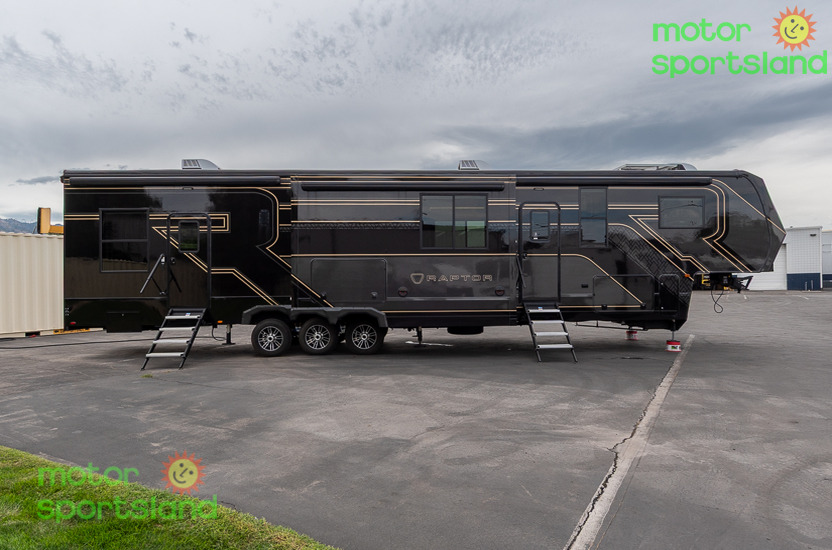

It runs 46 feet 1 inch long and 13 feet 3 inches tall, riding on three axles with a 21,000 lb GVWR and a 17,645 lb dry weight. Hitch weight comes in at 3,990 lbs, so you'll want a truck rated for that before you load a single thing. Tanks are sized for staying out: 173 gallons of fresh water, with 104 gallons each for grey and black.

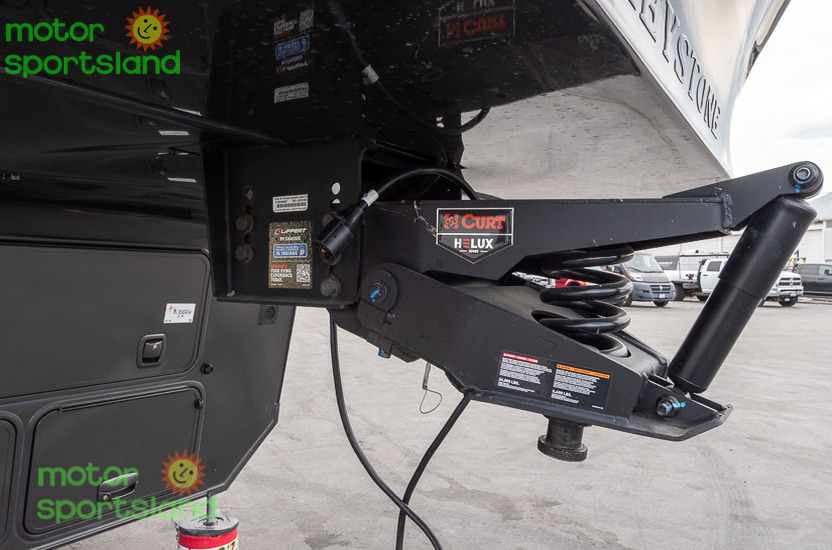

Leveling is handled by a 6 point hydraulic auto leveling system, with power jacks at both ends, so setup is a matter of pressing a button and watching it settle. The Exterior Adventure Package and Velocity Package are on the build sheet as standard, and an 18 foot awning covers the entry side. Two LP tanks and two entry doors round out the exterior, and if you want to run your own power, a 5.5K generator is available.

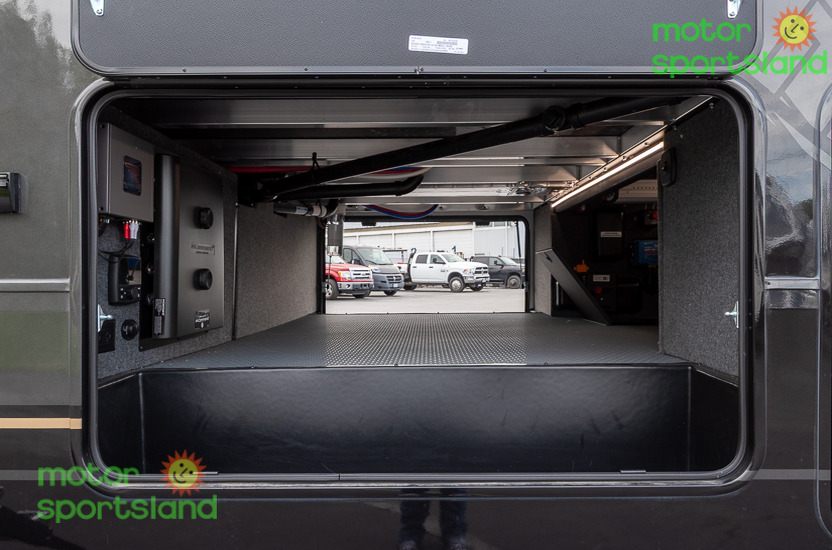

Storage is the part people underestimate on a rig this size. The pass-through will swallow chairs, hoses, tools and the bins you keep meaning to organize, and it's easy to reach from either side.

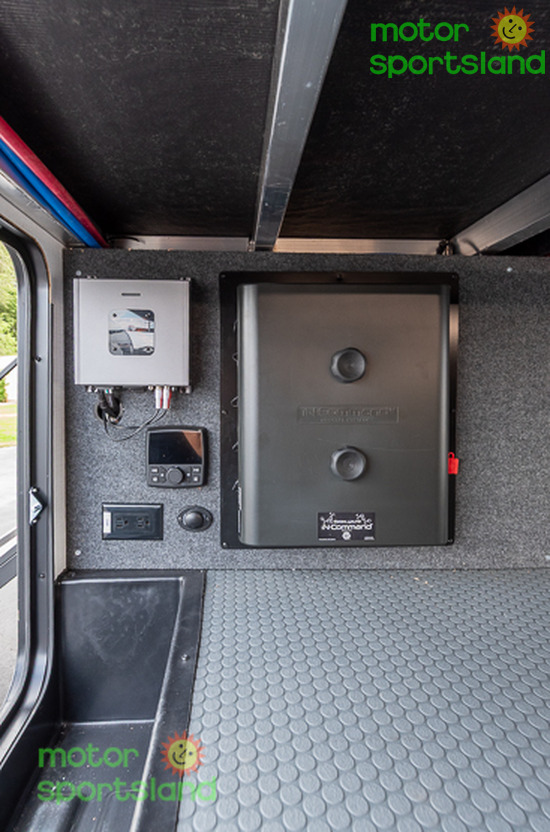

Monitoring and controls sit at a single panel, so tank levels and systems are read in one spot instead of three.
Kitchen

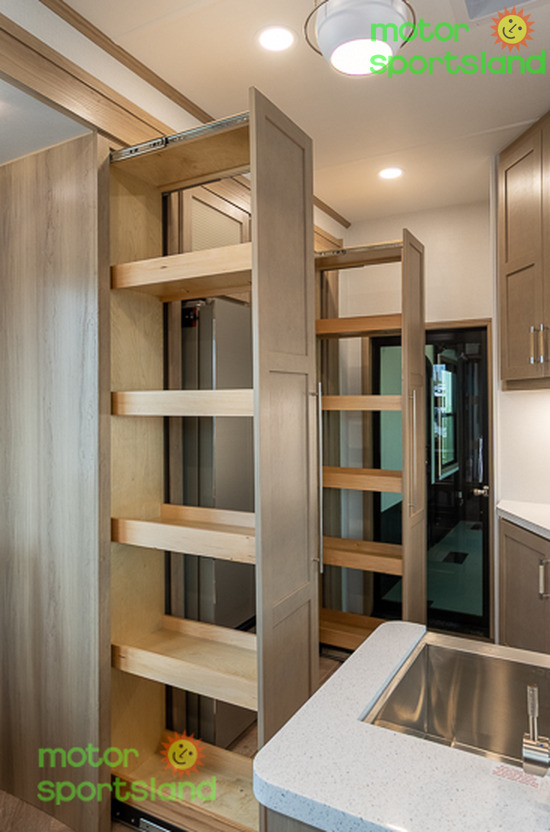

The kitchen is built for real cooking, not just reheating, which matters when you're parked somewhere for a week.
A four burner cooktop gives you room for a pan and a pot at the same time, and the convection microwave handles baking and browning without a separate oven routine. Counter space benefits from the slide outs, and there are three of them in this floorplan.

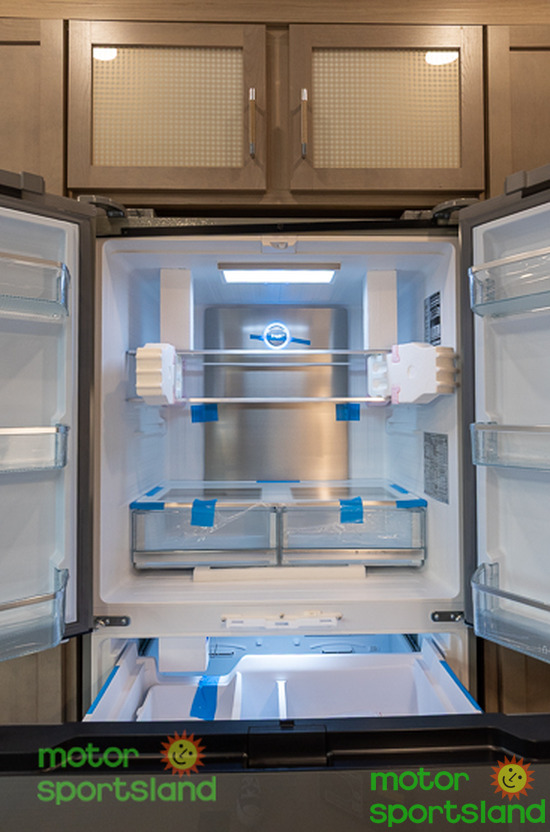

A 12V refrigerator is available, which is worth asking about if you boondock and want cold food without running on propane. The Interior Luxury Package is standard, and the Loam decor keeps the cabinetry and counters on the warmer, softer side rather than stark white.

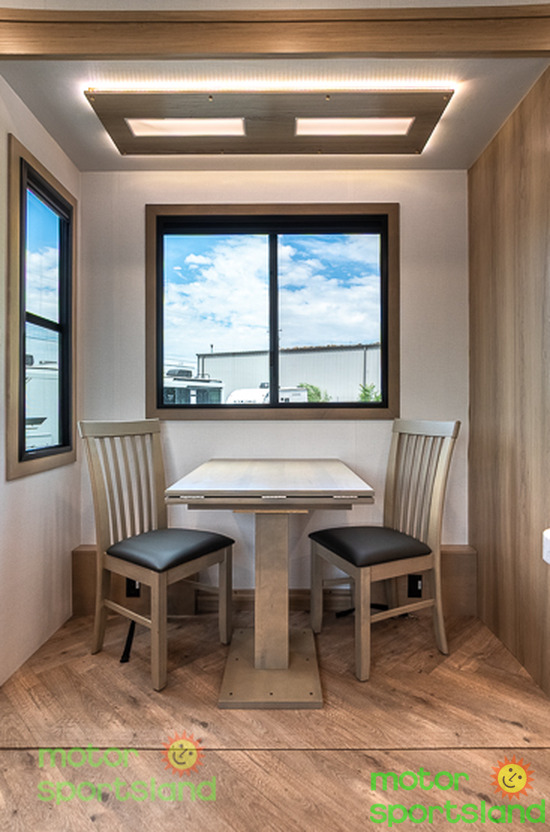

Living and dining

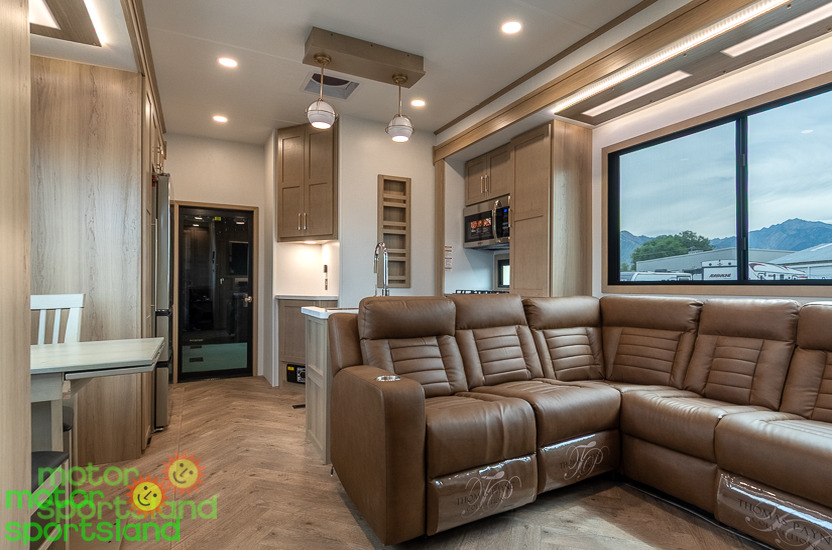

Center living is what makes this layout work for a group, because the seating area isn't crammed into a corner behind the kitchen.

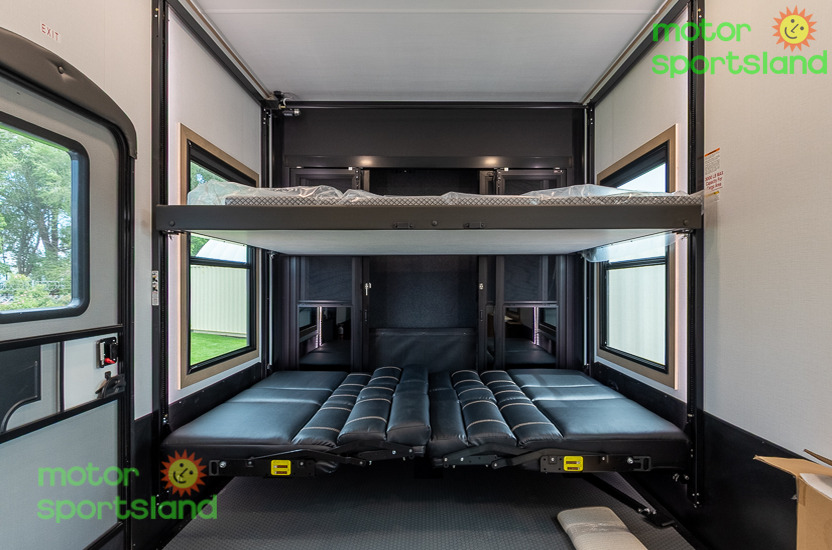

Roll over sofas with a bonus bunk line the space, so the same furniture you lounge on during the day turns into sleeping spots at night. There's also a HappiJack sofa/folding bed, which is the piece that lets you convert the area without dragging cushions around the coach.
TV prep is standard, and the listing includes rear entertainment, so the back of this bunkhouse toy hauler is set up to be a hangout when the gear is unloaded. Climate control is serious: the Triple A/C Package is standard, and a 35,000 BTU furnace keeps up with Utah shoulder seasons. If you want the back opened up, a sliding rear patio door and a ramp patio with awning and patio steps are both available.
Bedroom

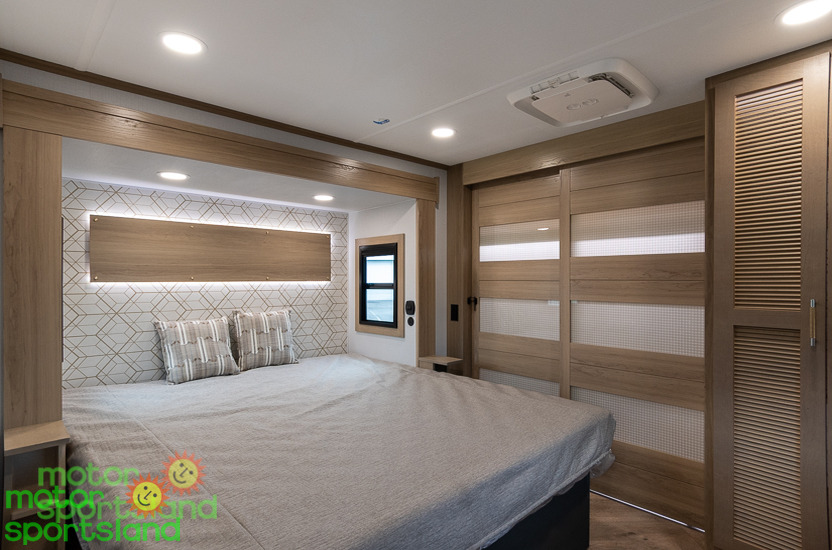

The front bedroom gives you a king bed and a door you can close on the rest of the coach.
It's a separate room rather than a nook, which is the difference between going to bed at ten and waiting for everyone else to settle down. Slide out space keeps walking room on both sides of the bed.
Closet storage is real hanging space, not a token cabinet, so a week's worth of clothes and riding gear can live on hangers instead of in duffel bags on the floor.
Bunks and loft
The bunk and loft are what take this from a couple's coach to a sleeps-seven coach.
There's a dedicated bunk plus a loft, and that's on top of the roll over sofas with the bonus bunk and the HappiJack folding bed. Seven sleeping spots in a 46 foot coach means kids, riding buddies or both, without anyone camping on the floor.
The loft is also the spot that quietly becomes gear storage on trips when you're not sleeping a full crew. Helmets, bags and bedding go up and out of the way.
Bath

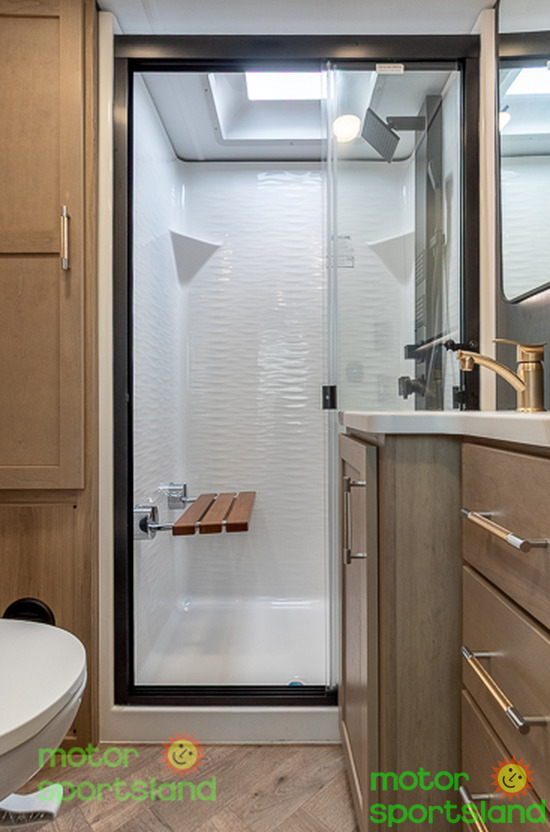

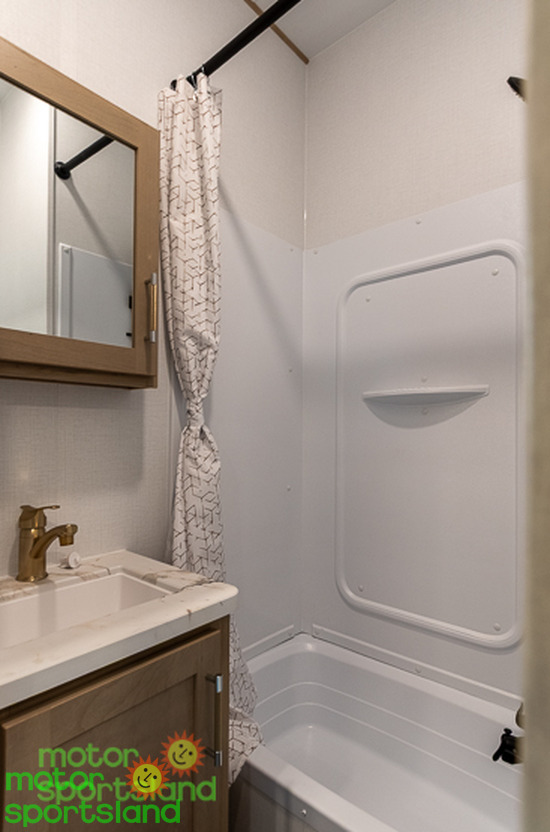

Two full baths is the feature that keeps a crowded weekend civil, and this layout has them.
One is the center bath, positioned so it serves the living and bunk side of the coach rather than forcing everyone through the bedroom. That's the practical argument for a center bath floorplan: the shower is reachable from wherever you are without a march through the whole rig.
Both are full baths, so there's a second shower when four people want to clean up after a day on the trail at the same time. The Interior Luxury Package carries through here as well.
If you've been looking at new toy hauler options and wondering whether a group can actually live in one for a week, this is the layout that answers it. Among the toy haulers for sale in Utah, a triple slide with two full baths, a king bedroom, a bunk and a loft covers more sleeping and living needs than most.
Frequently asked questions
How many people does this floorplan sleep?
Seven. That comes from the king bed in the front bedroom, the dedicated bunk, the loft, the roll over sofas with bonus bunk and the HappiJack sofa/folding bed.
What truck do I need to tow it?
Plan around the numbers: 21,000 lbs GVWR, 17,645 lbs dry and a 3,990 lb hitch weight on three axles. Bring your truck's door-jamb and payload ratings to the store and we'll walk through it with you.
Does the 433 really have two bathrooms?
Yes, two full baths, one of which is the center bath that serves the living and bunk side of the coach.
How long and tall is it?
It measures 46 feet 1 inch long and 13 feet 3 inches tall, so check your garage, gate and any low clearances on your usual route.
What options can I add?
A 5.5K generator, a ramp patio with awning and patio steps, a sliding rear patio door and a 12V refrigerator are all available on this model.
This Keystone toy hauler is at Motor Sportsland in Millcreek, Salt Lake City, and the rooms make more sense in person than in any description. Come walk it, sit on the sofas and open the closets, and check the live listing for current photos and details before you drive over.
